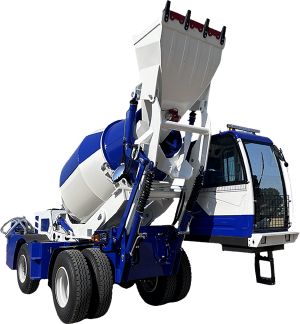

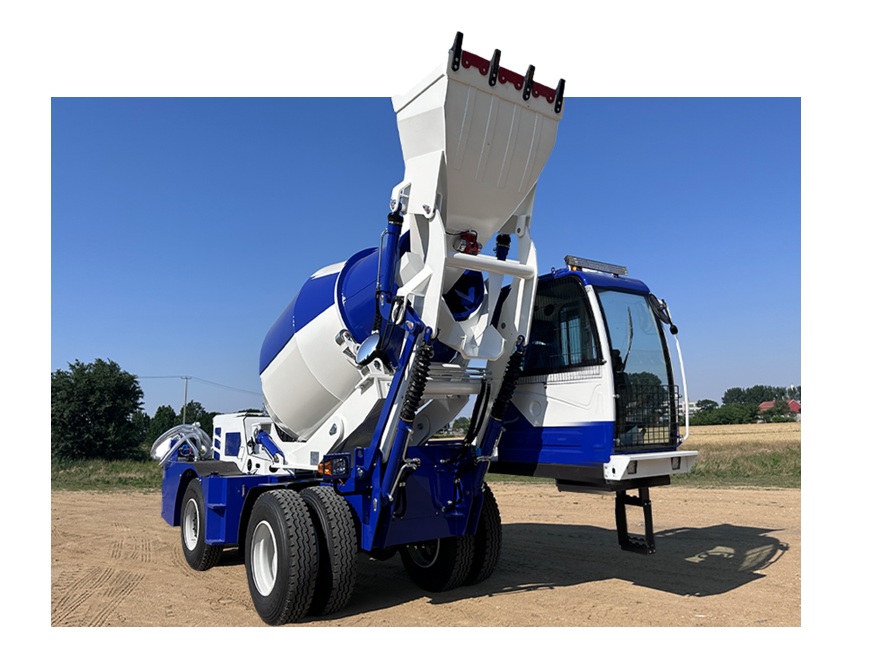

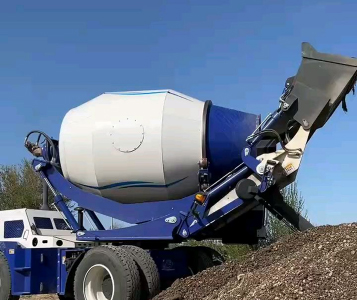

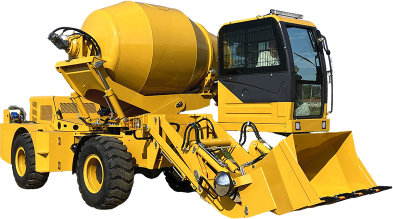

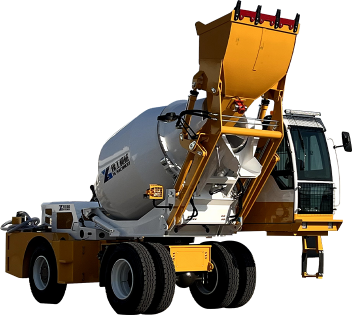

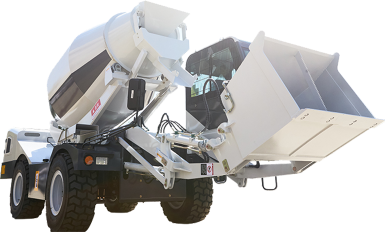

The concrete automatic feeding mixer is a concrete mixing truck suitable for small-scale construction,integrating automatic feeding, mixing, transportation and automatic unloading.It adopts high-power diesel engine and hydraulic torque convert-er to ensure the power required forwalking and stirring at the same time.
YG-1.8m³
YG-2.6m³
YG-3.5m³
YG-4.0m³
| Model | YG - 1.8m³ | YG - 2.6m³ | YG - 3.5m³ | YG - 4.0m³ |
| Tank Capacity | 2.6m³ | 4.0m³ | 5.5m³ | 6.8m³ |
| Tank Discharge Capacity | 1.8m³ | 2.6m³ | 3.5m³ | 4.0m³ |
| Bucket Capacity | 0.4m³ | 0.5m³ | 0.6m³ | 0.7m³ |
| Drum Rotation | 270° | 270° | 270° | 270° |
| Ground Clearance | 260mm | 345mm | 345mm | 350mm |
| Wheelbase | 2500mm | 2760mm | 2760mm | 3100mm |
| Power | 78KW | 78KW | 85KW | 91KW |
| Maximum Climbing Angle | 35° | 35° | 40° | 40° |
| Maximum Speed | 30km/h | 35km/h | 35km/h | 45km/h |
| Tank Rotational Speed | 20r/min | 20r/min | 18r/min | 18r/min |
| Size (mm) | 6400X2450X2900 | 6650X2600X3200 | 7750X2750X3250 | 7500X2850X3500 |
| Weight | 6300kg | 7000kg | 8000kg | 9500kg |
Leading design, automatic feeding and mixing system.
Simple operation for user-friendly convenience.
High-efficiency output, saving time and effort, and reducing costs.
Integrates mixer truck, loader, and transport vehicle seamlessly.
6-month warranty, perfect after-sales service.

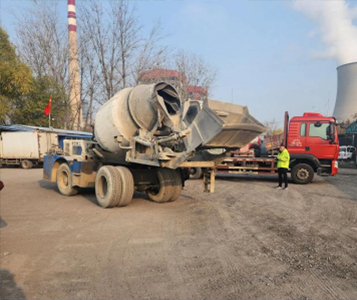

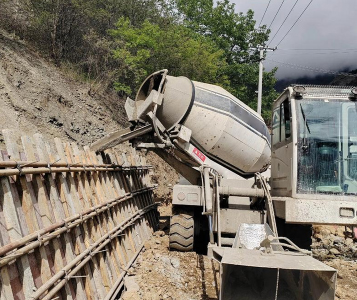

Discharge from a 270-degree rotating mixing tank.
